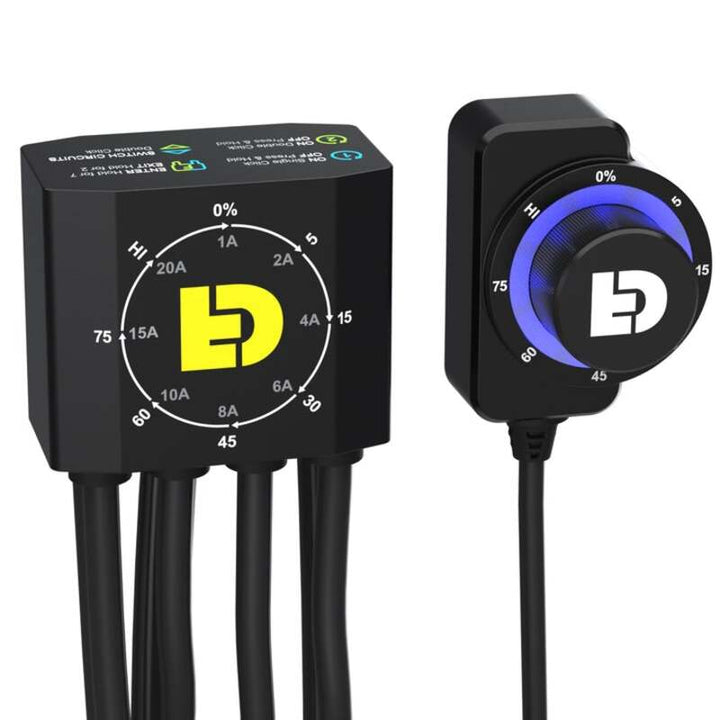

DENALI DialDim™ Lighting Controller – Smart control for auxiliary lights (DNL.WHS.20500)
Take full control of your bike lighting with DENALI DialDim™ Lighting Controller – a groundbreaking solution that provides you with two independent light circuits, intelligent control, and a unique multicolored halo switch that shows exact light intensity in real time.
With a single control, you can turn on, turn off, and dim two sets of 3-wire auxiliary lights – perfectly integrated with high beam, turn signals, and horn functions. Whether you need full light in dark forests or subtle DRL lights in city traffic, DialDim™ gives you the precision you need.
Highlights & Features:
-
Two completely independent light circuits – controlled via a single button
-
Eight light intensities per circuit – from 5% to 100%
-
Multicolored halo button shows exactly set mode in real time
-
High beam sync – auxiliary lights go to 100% with the original high beam switch
-
Stealth mode – lights off until high beam, turn signals, or horn is used
-
Turn signal interruption & integration – lights react to factory turn signals
-
Strobe with horn – auxiliary lights flash on horn signal
-
Electronic fuses – adjustable 1A–20A with reset function
-
Voltage monitoring – warnings at low battery level, automatic shutdown at <10.8 V
Technical Specifications:
-
Operating voltage: 12 VDC
-
Max load: 20A per circuit, 30A total
-
Fuse levels: 1A–20A (electronically controlled)
-

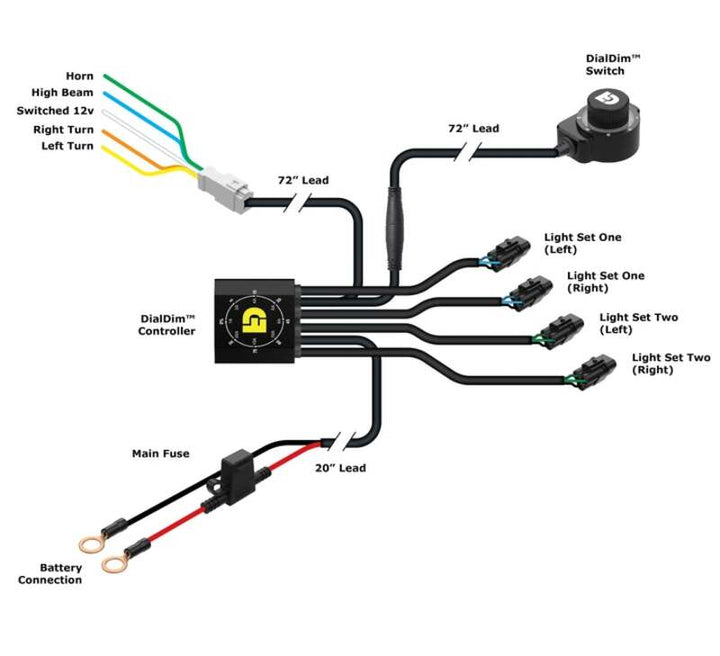

Five inputs: ignition, high beam, horn, left turn signal, right turn signal
-
Waterproof construction – both control and control unit are fully sealed
What’s included in the package:
-

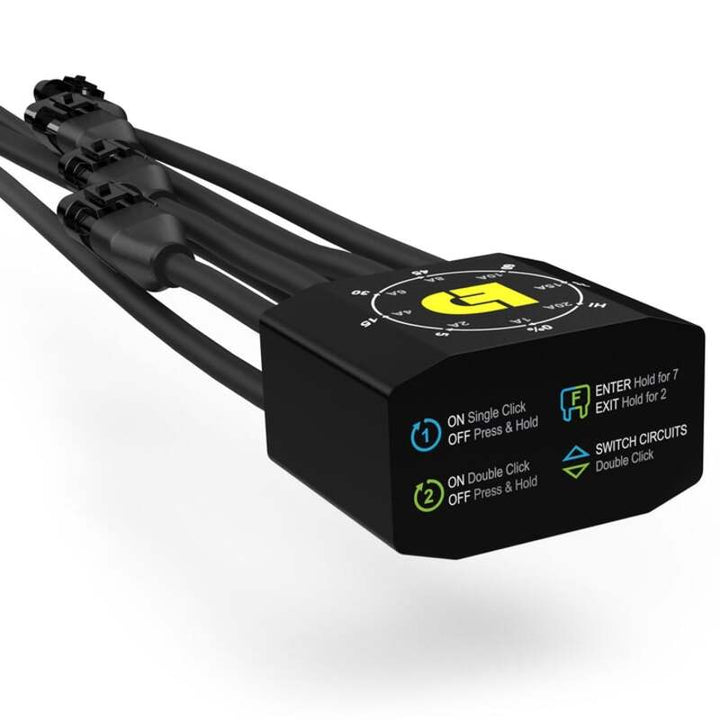

1 x DialDim™ controller wiring
-

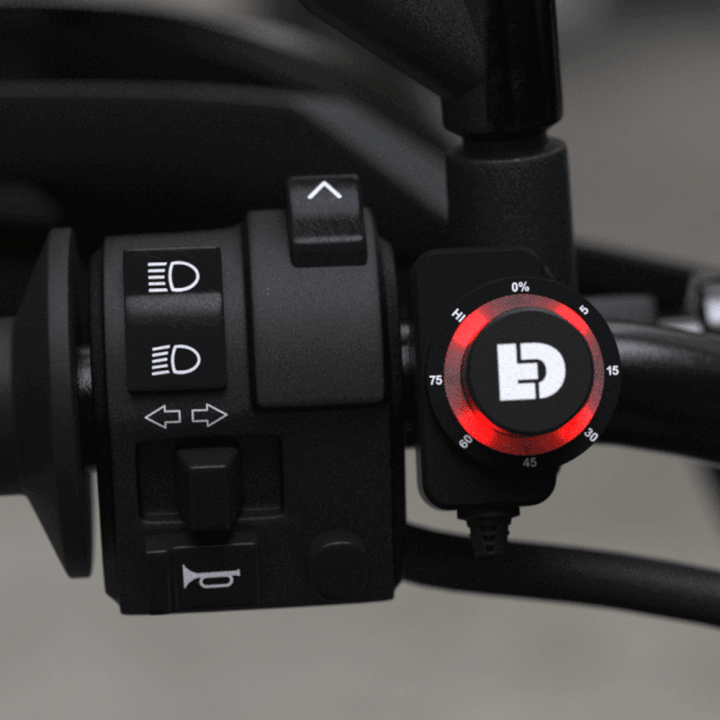

1 x DialDim™ multifunction switch with halo light
-
1 x 7/8” mounting bracket
-
4 x Plug & Play light extension cables (137 cm)
-
1 x Universal trigger cable harness for input signals
DENALI DialDim™ – more than a light switch. It’s your onboard electrical assistant.
Smarter driving. Higher safety. Full control.
